ANGRO company(Poland) has existed since 1996. Is a manufacturer well known in many countries around the world - offering stitching machines, stitching machines for packaging We offer machines of good quality and attractive prices.

►  stitching machines
We offer: ANGRO x-14, 1-head; ANGRO x-14, 2 -heads. Both versions: expandable up to 4 heads
ANGRO stitching machines cardboard bending machines PolandPurpose: stitching copy-book standard fastener with eye and block stitching to 60 pieces of paper with 80 / m2
weight. Standard staples type “24”. At the client’s request stitching machine : staples of thinner type "26".
Staple accessories: special stitching head. It combines one or two heads(max.) 60 ÷ 120 pages and 80g / m2 weight of paper with classic staple type "9".
Recommended staples: “NAGEL "or “RAPID "

ANGRO stitching machines cardboard bending machines PolandANGRO stitching machines cardboard bending machines PolandANGRO stitching machines cardboard bending machines Poland

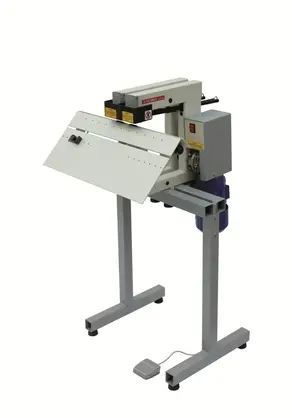

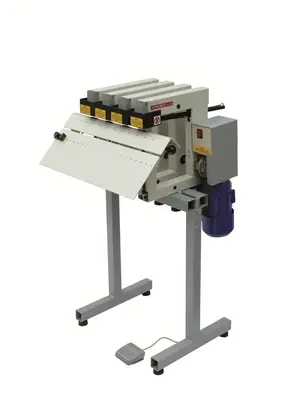

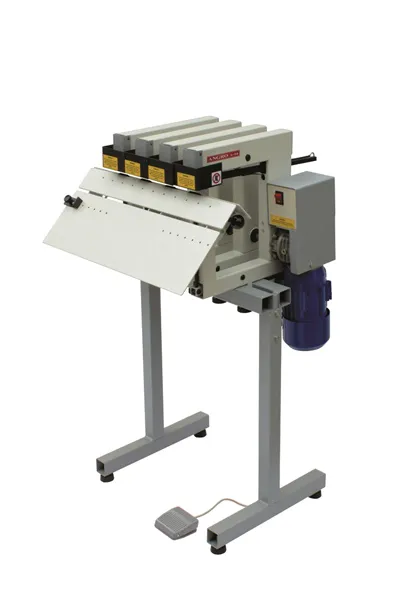

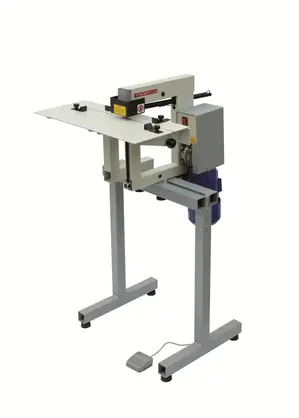

ANGRO x-14 1-head. / ANGRO x-14 2-head. / ANGRO x-14 4-head.


Stitching machine:
- Power supply - 230V/50Hz
- Number of staples - 93/min
- Capacity - 300 staples of "24" and "9"
- 400 staples of "26"
- Staple dorsal overhang - notebook A3 size (when unfolded A2 + 10 mm)
- Flat close staples – as a figure below
- A way to impose material - manual
- How to start the machine - foot
- Weight (version 2-heads) - 33 kg
- Dimensions: W x L x H - 540 × 535 × 930 (mm)

ANGRO stitching machines cardboard bending machines Poland
- Does not require adjustment when changing the thickness of paper.

► Cardboard bending machines
We offer cardboard bending machines of types: ANGRO 501; ANGRO 504S; ANGRO 704S
Purpose:
creasing soft covers, invitations, workbooks, cartons and papers: painted, foil, laminated
Extra equipment ANGRO 504S; ANGRO 704S:
Make perforating line
press together calendar bars
creasing one-line materials to thickness 2.5 mm
taboret Accesories ANGRO 501:
stool

ANGRO stitching machines cardboard bending machines PolandANGRO stitching machines cardboard bending machines Poland

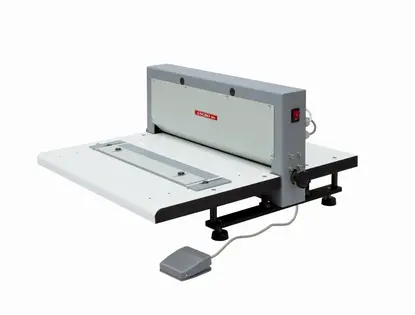

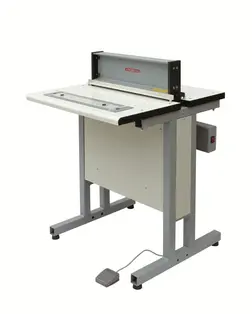

Table ANGRO 501 / ANGRO 504 S; ANGRO 704 S


● Parameters:

  cardboard bending machines ANGRO 501 ANGRO 504S ANGRO 704S
Length in mm 500 500 700
Mount of creasing lines 1 4 4
Width in mm 1,2 ; 1,6 1,4 1,4
Constancy distance between 1 and 2 or 3 and 4 creasing lines - 6,7 6,7
Changeable distance between 2 and 3 creasing line (mm) - 5 ÷ 30 5 ÷ 30
Extra

equipment
Perforating tool for perforating line -
Tool used for pressing together calendar bars -
Tool for creasing materials materials to thickness 2.5mm (albums, file binders) lengthwise 350mm -
Stool - -
  Number of working cycles per min. 1200 94 94
Max creasing distance from the side of the carton 400 mm 370 mm 480 mm
How to start the machine foot-operated foot-operated foot-operated
propulsion electromagnet engine engine
power supply 230V/50Hz 230V/50Hz 230V/50Hz
Weight In kg 30 93 140
Dimensions - w x l x h in mm 660x620x300 650x650x910 850x800x910

► Stitching machines for packaging
Types of stitching machines for packaging: ANGRO T-18; ANGRO K-8
Purpose ANGRO T-18/1000
Stapler used by manufacturers of packaging products. Connects corrugated cardboard 2, 3 and 5 layers.
Stitches elements of boxes of various materials. Staples of K-15 type.
Extra equipment: Stitching head with thin staples K16 type
supporting arm for large boxes.
Staples K15 (K16) type.
staples by AKES Sp.j

ANGRO stitching machines cardboard bending machines PolandANGRO stitching machines cardboard bending machines PolandANGRO stitching machines cardboard bending machines Poland

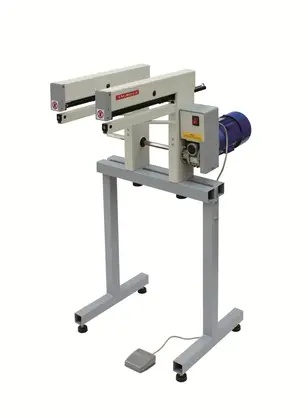

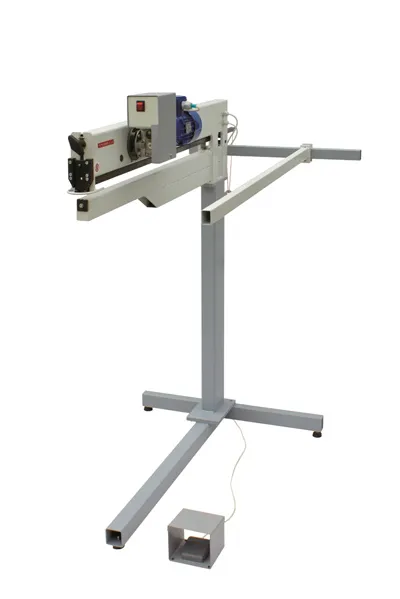

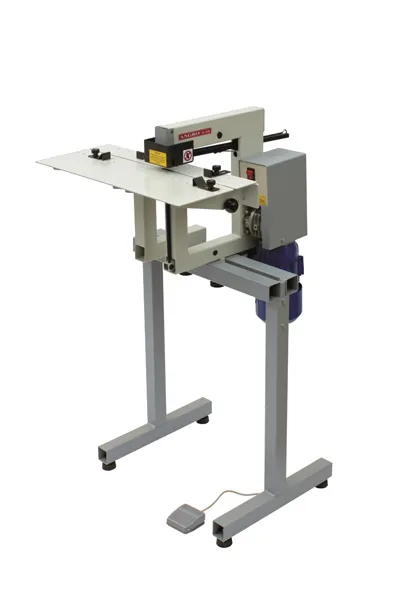

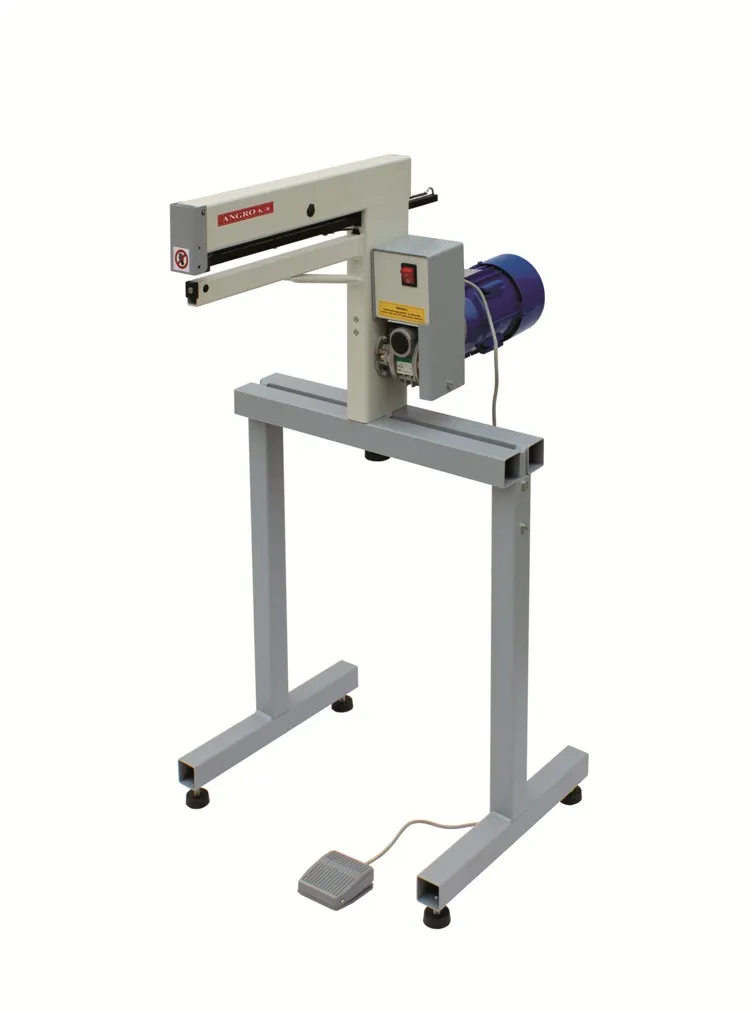

ANGRO T-18/1000 / ANGRO K-8 1-head / ANGRO K-8 2-heads

Purpose and use ANGRO K-8
ANGRO K-8; 1-head; ANGRO K-8; 2- heads.
Stapler 2 heads can be expanded up to 4 heads. Standard staples type “24”, material with a total thickness 6 mm. Machine with two heads allows connect three sides of a box. Minimum wheelbase of heads: 48 mm. Does not require adjustment when changing the thickness of material.
Staples type 24.
Recommended staples NAGEL” or „RAPID”.

● Parameters:

  ANGRO T-18/1000 ANGRO K-8
Arm length in mm 1000 315
Number of staples per min 140/min 140/min
Frequency of stitching singly and in series singly
Way of closing the staples on matrix
Way to impose material manual
How to start the machine foot
Location of staples against the arm perpendicular
Amount of staples type K15 in machine 550 szt. -
Amount of staples type K16 in machine 990 szt. -
Amount of staples type 24 in machine - 400 szt
propulsion engine
Power supply 230V50Hz
Weight in kg 65 30
Dimensions - w x l x h in mm 900´1390´1450 500´520´1000

∩ Staples used to stitching machines:

Type of staples Height of staples Dimension of staples
zszywek
dimension wire staples Application
classic with eyes width thickness
24 Ri 24 6; 8 11,8 0,65 0,5 ANGRO: x14, K-8
26 Ri 26 0,55 0,45 ANGRO x-14
9 - 10; 12; 14 11,6 0,75 0,6
K15 - 12; 15; 17; 18 16 2,3 0,9 ANGRO T-18
K16 - 10; 13; 15; 18 1,4
